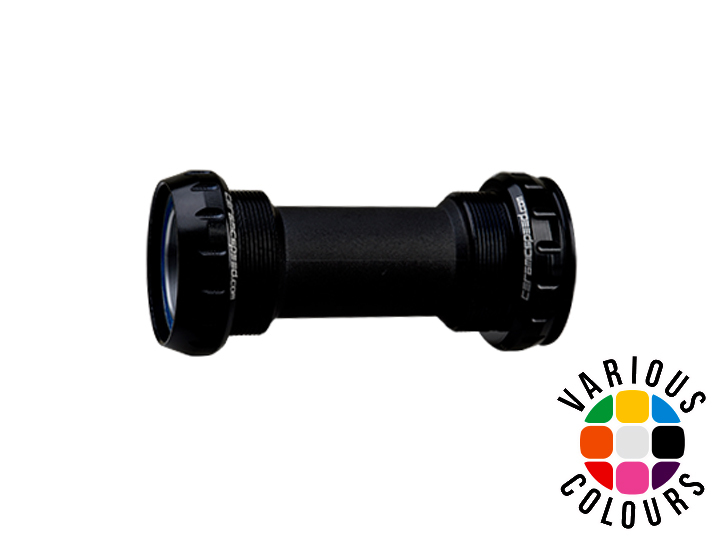

CeramicSpeed BSA Campy UT Road Bottom Bracket

CeramicSpeed delivers unmatched performance in key areas of your bike.

CeramicSpeed Bottom Bracket for Campagnolo Ultra Torque cranks with external cups.

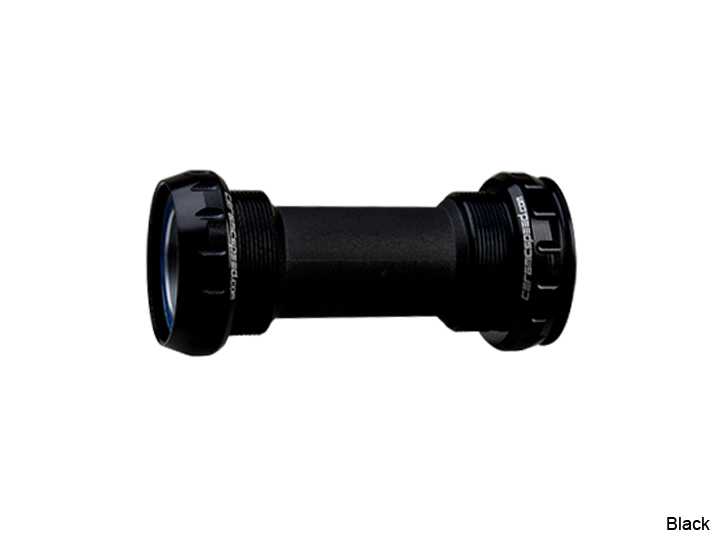

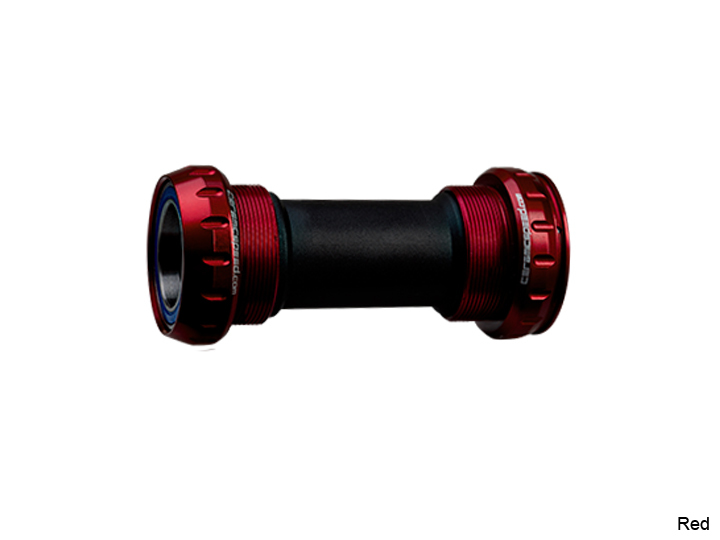

This CeramicSpeed BB fits English-threaded frames (BSA) and available with standard or coated bearings. The cups come in red or black.

Ceramicspeed make sure that the end product matches the highest quality and ensures the longest lifetime.

In their coated bearings, the raceway is coated with a very thin protective layer, which is 75% harder than hardened steel. Additionally, the special coating reduces friction even further and increases the bearing durability even more. This bottom bracket is very stiff, and thanks to the quality materials used, the entire system is extremely efficient.

Features

Did you know that this product has a lifetime warranty? That’s right: as of September 1, 2021, all CeramicSpeed ‘Coated’ products and OSPW cages (purchased after January 1, 2021) are covered for life — that’s how confident CeramicSpeed are in the durability of their products. You can check out the full terms and conditions here.

Coated bearings

CeramicSpeed’s coating has several performance enhancing properties that makes it unique. Thanks to their continuous R&D program, CeramicSpeed have developed a special coating in cooperation with a European coating specialist. Applied to the steel races of the bearing, through an advanced process that ensures an even, smooth and homogeneous surface, the coating formula improves even further the high quality of the CeramicSpeed bearings.

Low friction – Once coated, the bearing races deliver a hardness level matched only by the CeramicSpeed balls, providing an extremely low friction coefficient between the two materials. The result is thus even less friction in our coated bearings than in their standard bearings.

Coating Graf Friction – The coating is a metallic layer, which is 75% harder than the hardened steel races. The coating is applied in a very thin and even layer of 3 microns (0,003 mm) on the entire surface of the bearing race. Both the inside and the outside are treated to achieve optimal results. As CeramicSpeed use a metallic coating on top of the hardened steel, it can be difficult to see that a bearing is actually coated. However, if you take a closer look at a coated bearing, you will notice that the surface has a different shine than a standard CeramicSpeed bearing.

Lifetime – The coating has several properties that improve the lifetime of CeramicSpeed’s bearings. The increased hardness of the races combined with the super smooth and round CeramicSpeed balls, means virtually no wear on the bearing.

The coating layer is applied completely closed and homogenous. The formula used for the coating is extremely resistant to corrosion. This means that even if the bearing is contaminated with degreaser, water or mud, the risk of bearing failure due to corrosion is negligible.

How to achieve the optimal performance – The coated bearings are more resistant to lack of lubrication when it comes to wear and damage on the bearing nonetheless, this does not mean that the need for maintenance is completely eliminated. Just as CeramicSpeed do with their standard bearings, they recommend to always lubricate them with our special grease to achieve optimal performance in terms of low friction and long lifetime. For all training and racing applications they recommend the use of CeramicSpeed Blue all-round grease. If you want to achieve the lowest possible friction, CeramicSpeed recommend you to use their TT grease. Please be aware that compared to the standard Blue all-round grease, the TT grease has a shortened lifetime and therefore, it requires more frequent application.

Handmade in Denmark – Like all other CeramicSpeed bearings, their coated products are handmade in Denmark. This means all bearings are built by hand and inspected manually at each step in the production process. Building a coated bearing adds a number of extra steps to the process. The CeramicSpeed balls and steel races are matched within microns after which, each set of races is coated. The races are kept together in pairs through the entire process and after coating, each set needs to pass the quality control before they go into production.

CeramicSpeed coated bearings are available for pulley wheels, bottom brackets, wheel bearings and the Oversized Pulley Wheel System.

Specifications

Width: 68mm

Framefit: BSA Thread

Axle Diameter: 25mm Campy UT

What’s In The Box?

Bottom Bracket

Wave Washer

Safety Spring

Grease

Bottom Bracket Compatibility Matrix

* 30 mm cranks with a short spindle may have limited compatability.
** Does not fit a FSA crank from 2016 or newer.
*** Only BB30 fits shell width of 83 mm.
